L807 style ICAO Windsock assembly double lighted

ICAO windsock assembly



  • Secure payment
  • Very competitively priced
  • Fast delivery
  • Standard shipping rates in Europe. Delivery outside Europe? Request a quote.

Description

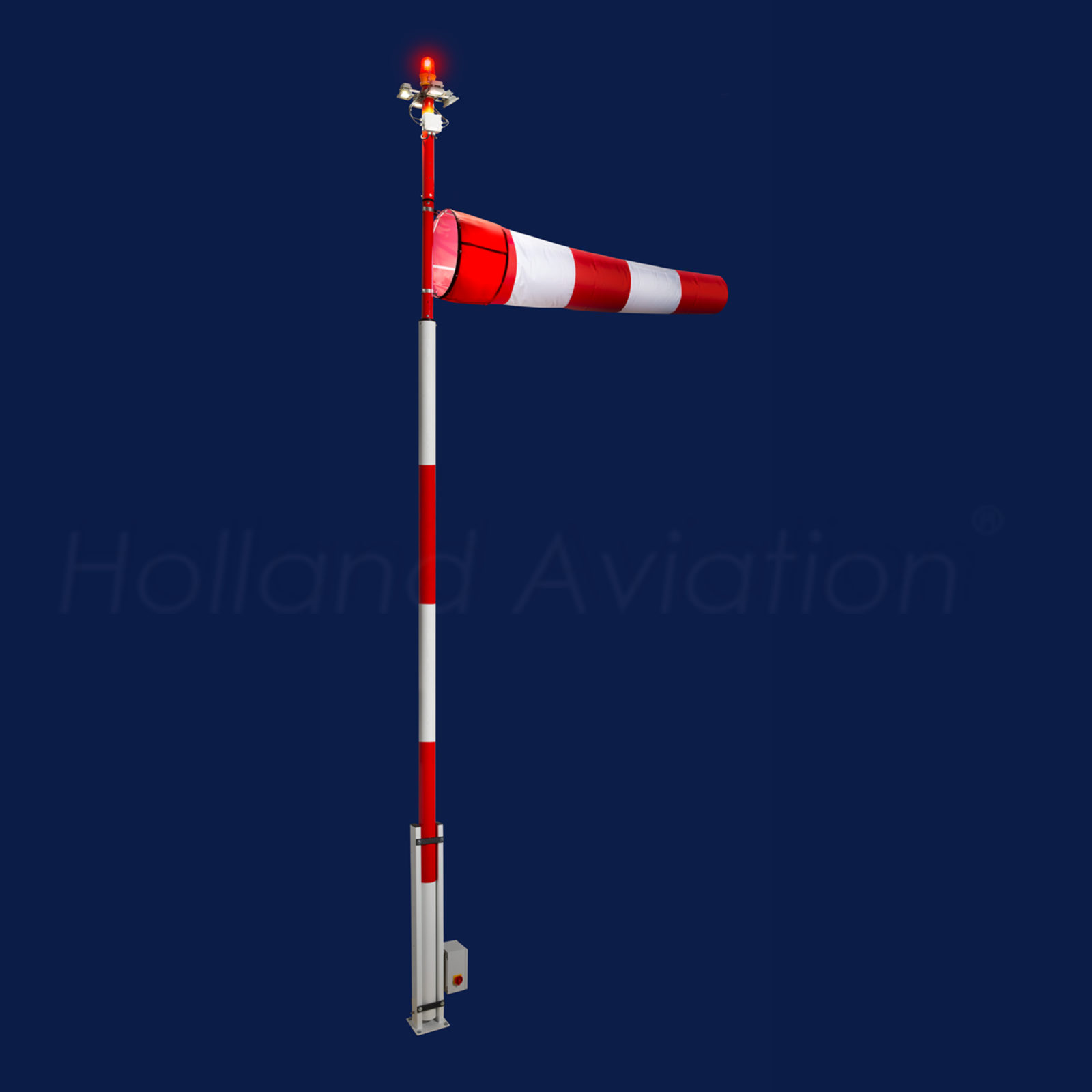

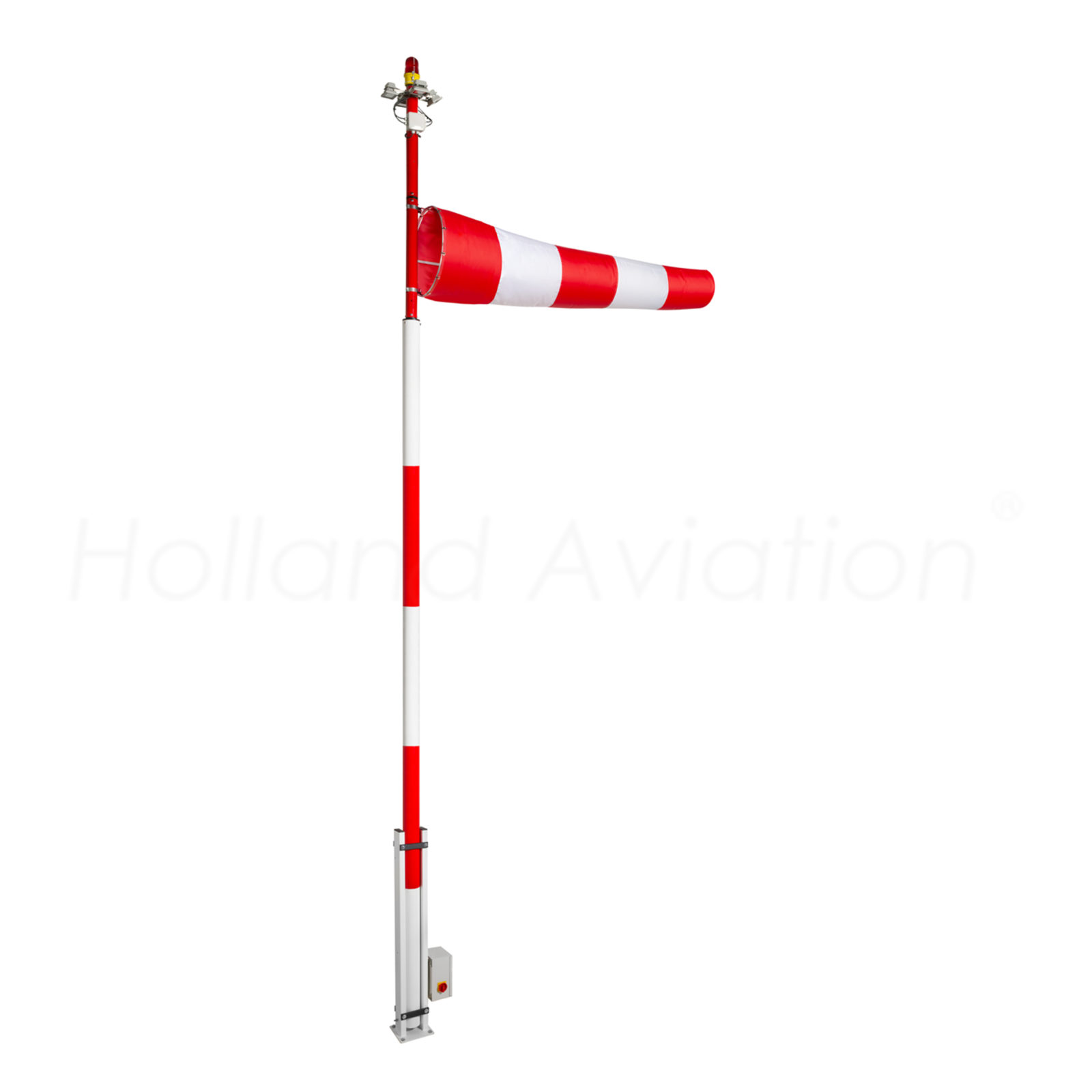

L807 Style ICAO Windsock assembly double lighted.

With a standard windsock size of Ø 90×375 cm or Ø 45×250 cm.



Holland Aviation is, constructing this from an L807 style mast made of T50 aluminium

We have this installation unlighted, externally, internally and double lighted.



Some key features of the L807 style ICAO Windsock assembly are;
  • The windsock gives a reliable wind direction.
  • Along with the wind direction, you can see a wind speed indication.
  • This installation has low maintenance costs.
  • This windsock assembly has a low power consumption.
  • A reliable fixed illumination system.
  • The assembly has no rotating electric parts.
  • In addition, Holland Aviation is not using any mercury-containing slip-rings.



The Colours red/white (ICAO) as well as orange (FAA), double-stitched with a reinforced front hem and grommets. The Holland Aviation windsocks are designed so that they taper from the throat to the trailing end. As a result of this, the windsock is fully extending when you are exposing it to a wind of 15 knots (is equal to 28 km/hr or 17 mph).

The HA windsock sleeves are proving to withstand wind speeds in excess of 145km/h (75 knots). The windsock fabrics have been tested for mechanical strength, UV resistance and color fastness by an independent laboratory.





Where to use windsocks

datasheet



Additional information

Mast material

T50 aluminium

Mast length

4800 mm

Mast diameter

Ø120 mm

Windsock frame material

SS AISI 316L

Swivel Bearings

2 Heavy Duty Stainless Steel Bearings

Color

FAA (Orange), ICAO-Style (Red/White)

Power supply

90-240VAC, 6,6A

Ambient Temperature

-40˚ C to + 60˚ C

Compliances

FAA AC 150/5345-27, UK CAP 437, ICAO Annex 14 Vol I, ICAO Annex 14 Vol II., UK CAP 168, EASA ADR
