HA-PWS Portable Windsock Assembly

Foldable mast

The HA-PWS Portable Windsock Assembly is a portable wind direction and windspeed indicator. The reliable illumination system (if present) is fixed and therefore has no rotating electric parts or sliprings. Due to its unique design, maintenance costs are low. The foldable structure enables easy handl... Read more
Request a quote

More information or advice?

Description

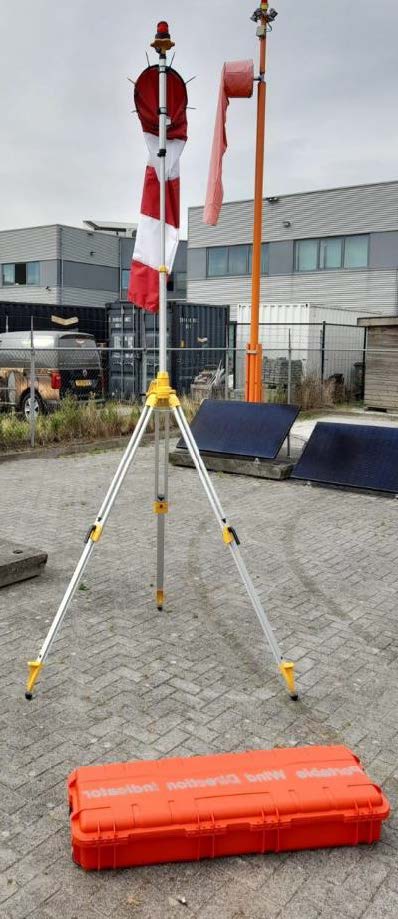

The HA-PWS Portable Windsock Assembly is a portable wind direction and windspeed indicator. The reliable illumination system (if present) is fixed and therefore has no rotating electric parts or sliprings. Due to its unique design, maintenance costs are low. The foldable structure enables easy handling and storage in a container for easy transportation. This portable windsock assembly is suitable for windsocks diameter of 30 cm, a length of 120, 150, and 180 cm. The HA-PWS is available in an unlighted or internally lighted version. Power supply is 12 VDC. The HA windsock sleeves have been proven to withstand wind speeds in excess of 145km/h. The windsock fabrics have been tested for mechanical strength, UV resistance, and colour fastness.



Durable and environmentally friendly

Made with care from quality materials, the windsock assembly ensures durability and accuracy in wind measurement. The illuminated windsock assemblies feature energy-efficient LED lights, contributing to their eco-friendliness. Additionally, using high-quality, durable materials further enhances their environmental sustainability.



Key Features of the HA-80RG windsock pole assembly:

  1. Reliable wind direction: The windsock assembly serves as a dependable wind direction indicator, providing accurate wind readings and essential information.
  2. Insightful wind data: By combining wind direction with the windsock’s orientation, you can estimate wind speed, empowering better decision-making.
  3. Efficient wind inflation: The windsock’s taper ensures full inflation, even in wind speeds as low as 15 knots, enhancing visibility and accuracy.
  4. Strong endurance: HA windsock sleeves have demonstrated durability against wind speeds exceeding 145km/h (75 knots), proving their reliability.
  5. Thorough testing: Windsock fabrics undergo comprehensive testing by an independent laboratory, ensuring mechanical strength, UV resistance, and colorfastness.
  6. Brut frame (without coating) with customizable windsock colors: Windsock offered in various color choices (red/white, solid orange, or other colors available upon request).

Embrace the HA-PWS Portable Windsock Pole Assembly as your dependable wind direction indicator. Holland Aviation’s commitment to quality ensures that you receive a product that meets your expectations and needs. Experience simplicity and accuracy with this windsock assembly, a true reflection of Holland Aviation’s dedication to quality.



Where to use windsocks

Datasheet

Additional information

Mast

Foldable

Mast length

Adjustable between 150 and 300 cm

Mast material

EN-AW-6060 aluminium

Windsock

Color red/white (ICAO) or orange (FAA), Double-stitched with reinforced front hem and grommets, Ø30cm up to and including Ø100cm,

Windsock material

Polyester, PU coated, approx. 185 gr/m²

Windsock Frame Material

Aluminium

Swivel Bearings

2 Heavy Duty Stainless Steel Bearings

Mast support

Foldable tripod

Lighting styles

Internally lighted, Unlighted

Power supply

12 VDC

Power consumption

Internal lighting 12 Watt LED, Obstruction light 5 Watt LED

Ingress Protection

IP 65

Ambient Temperature

-40˚ C to + 60˚ C

Compliances

ICAO Annex 14 Vol I Aerodromes, ICAO Annex 14 Vol II Heliports, EASA ADR, EASA CS-HPT-DSN, FAA AC 150/5345-27, UK CAP 168, UK CAP 437
